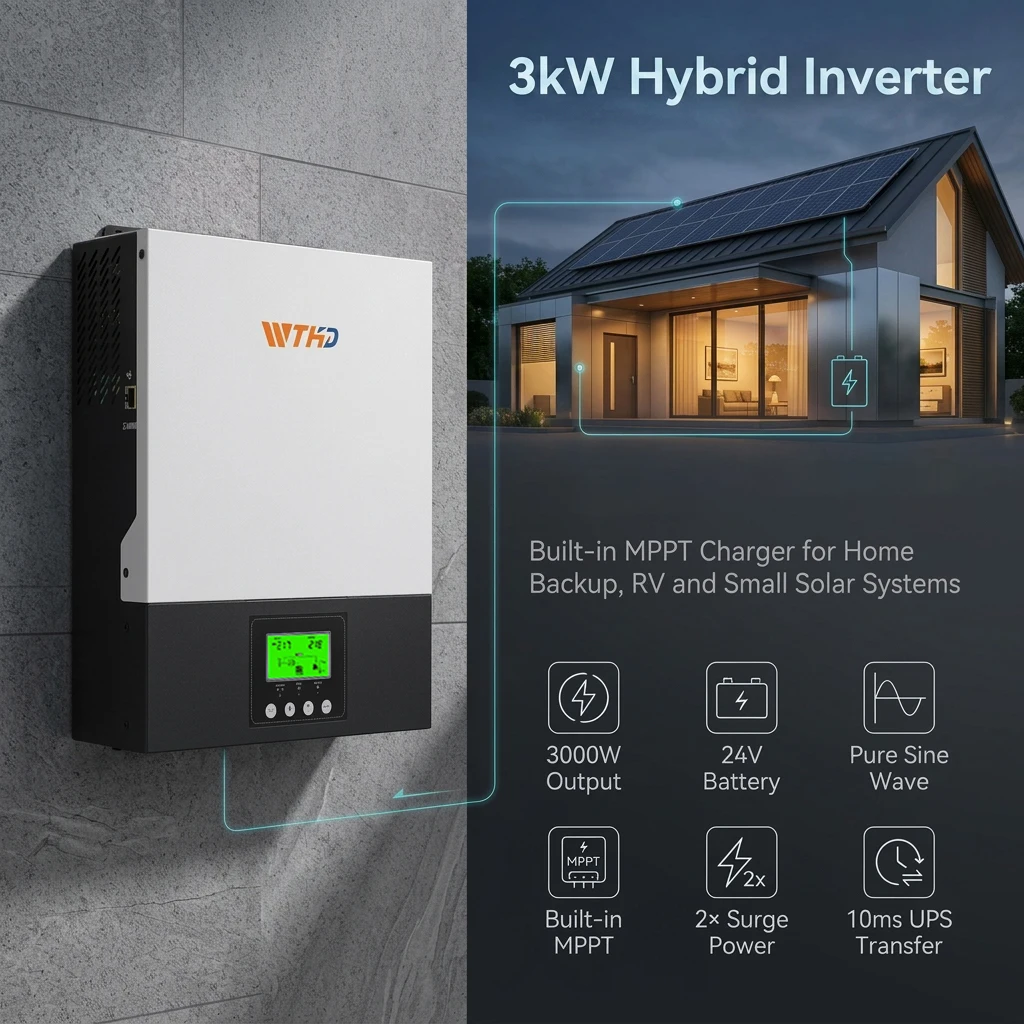

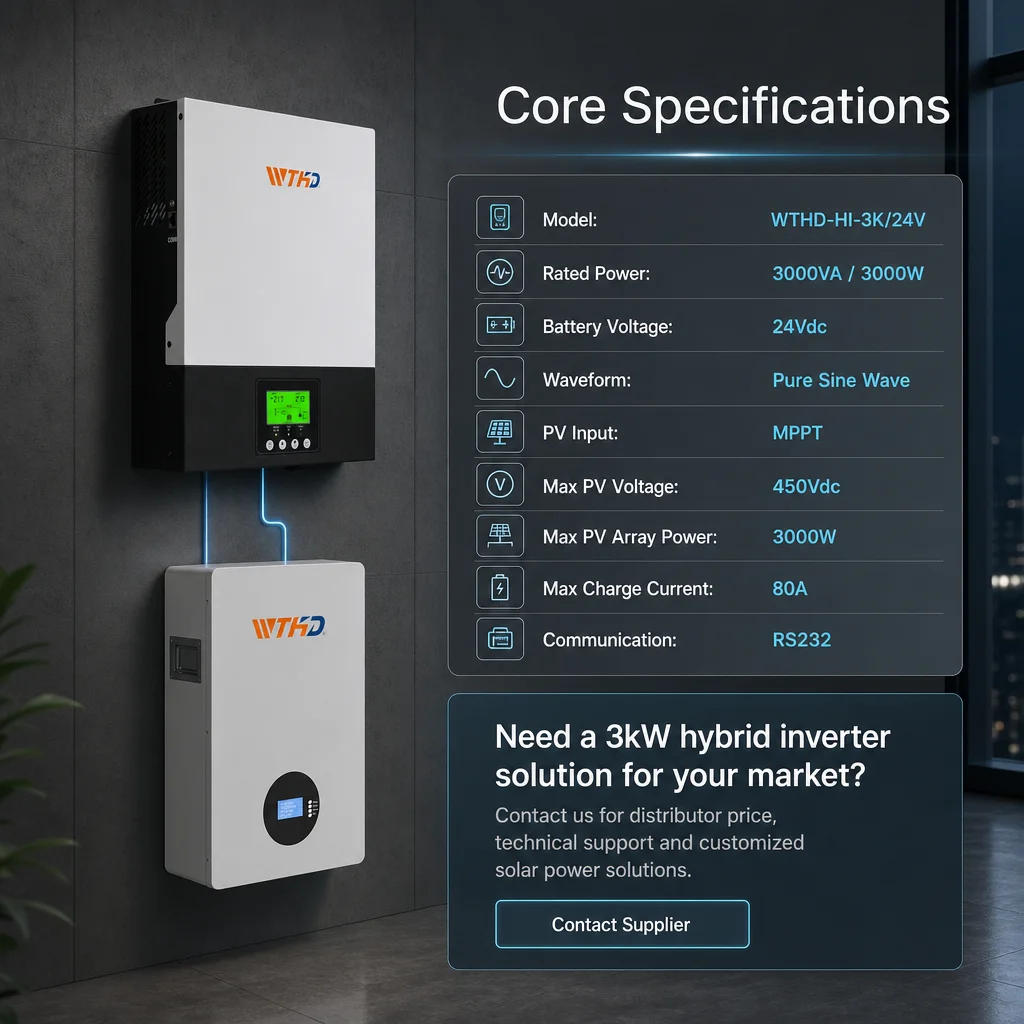

3KW 24V Pure Sine Wave MPPT off Grid Hybrid Solar Inverter 3000VA 3000W 80A Charger 90-430Vdc PV Range for Residential Power
Spu:
1601945881569
Description
Category |
Parameter |
Specification |
Basic Information
|
Model |
WTHD-HI-3K/24V |
Rated Power |
3000VA/3000W |
|
Parallel Operation |
Not supported |
|
AC Input
|
Voltage |
230Vac |
Voltage Range |
170-280Vac (For personal computers) / 90-280Vac (Suitable for household appliances) |
|
Frequency Range |
50 Hz/60 Hz |
|
Output Power
|
AC Voltage Range (Battery Supply Power) |
220Vac/230Vac/240Vac ±5% (Default: 230Vac) |
Frequency |
50Hz/60Hz (Default: 50Hz) |
|
Surge Power |
2*rated power for 5 seconds |
|
Efficiency (Peak) |
91% |
|
Transfer Time |
10ms (Typical UPS), 20ms (Home appliances) |
|
Overload Protection |
5s@≥150% load; 10s@110%~150% load |
|

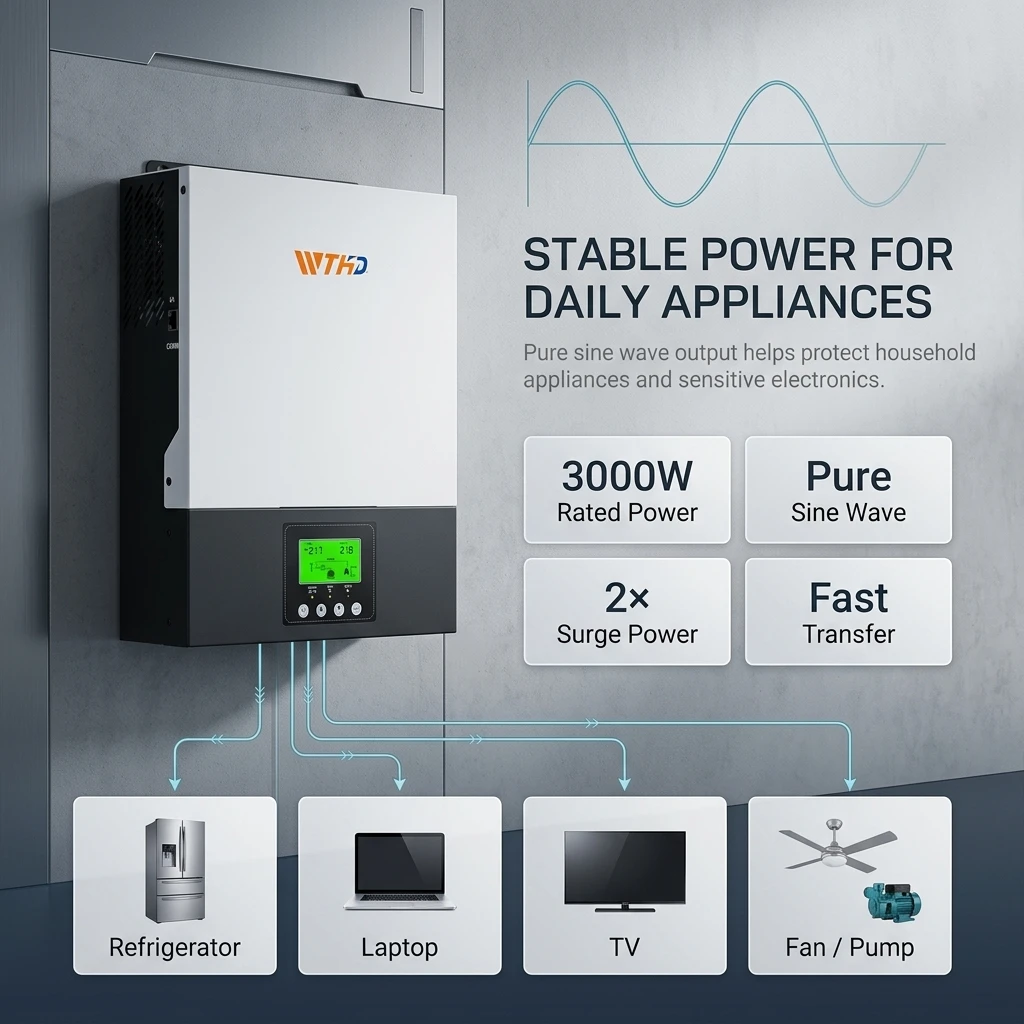

Output Waveform |
Pure sine wave |
|
Battery
|
Battery Voltage |
24Vdc |
Floating Charging Voltage |
27Vdc |
|
Overcharge Protection |
33Vdc |
|
PV & Utility Charging
|

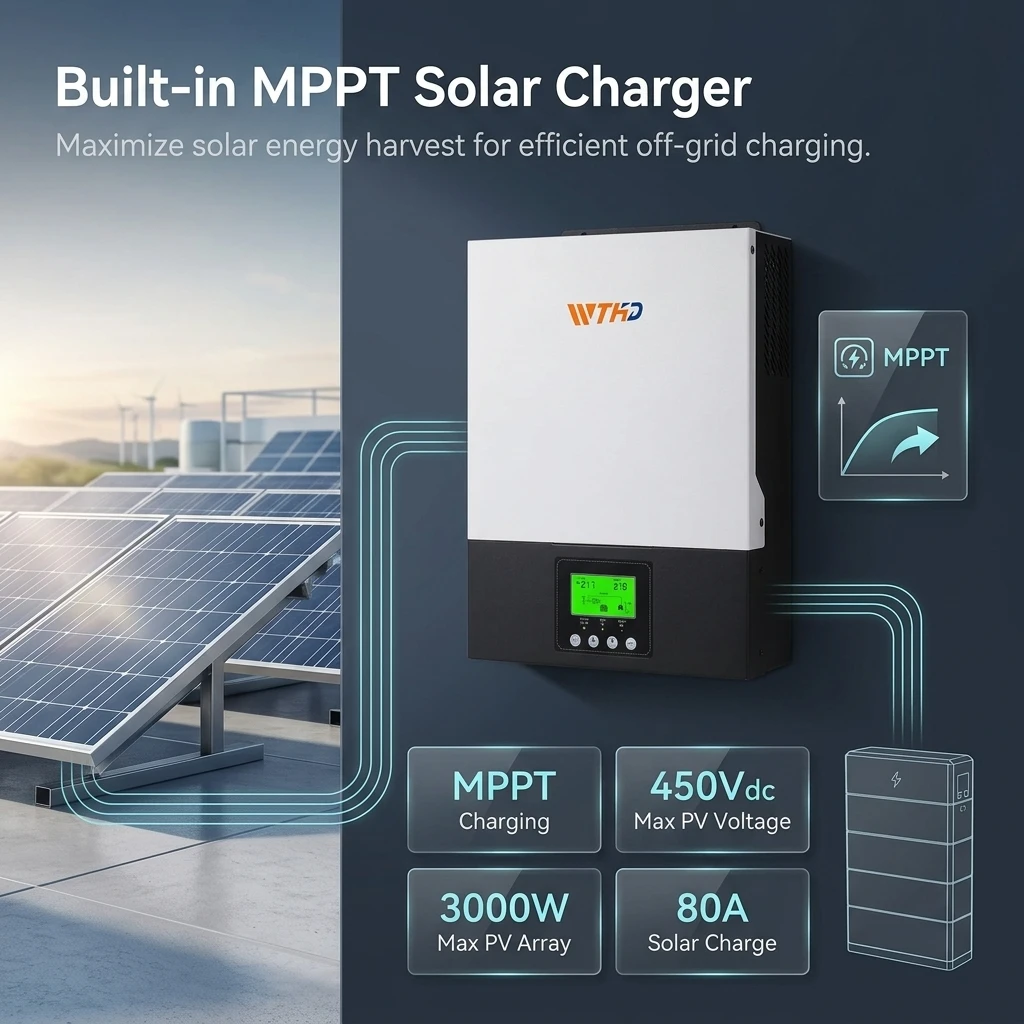

PV Input |
MPPT |
Maximum PV Array Open Circuit Voltage |
450Vdc |
|
Maximum PV Array Power |
3000W |
|
MPPT Range @ Operating Voltage |
90Vdc~430Vdc |
|
MPPT Rated Voltage Range |
240Vdc~430Vdc |
|
Max. Solar Charge Current |
80A |
|
Max. AC Charge Current |
80A |
|
Max. Charge Current |
80A |
|
Inverter
|

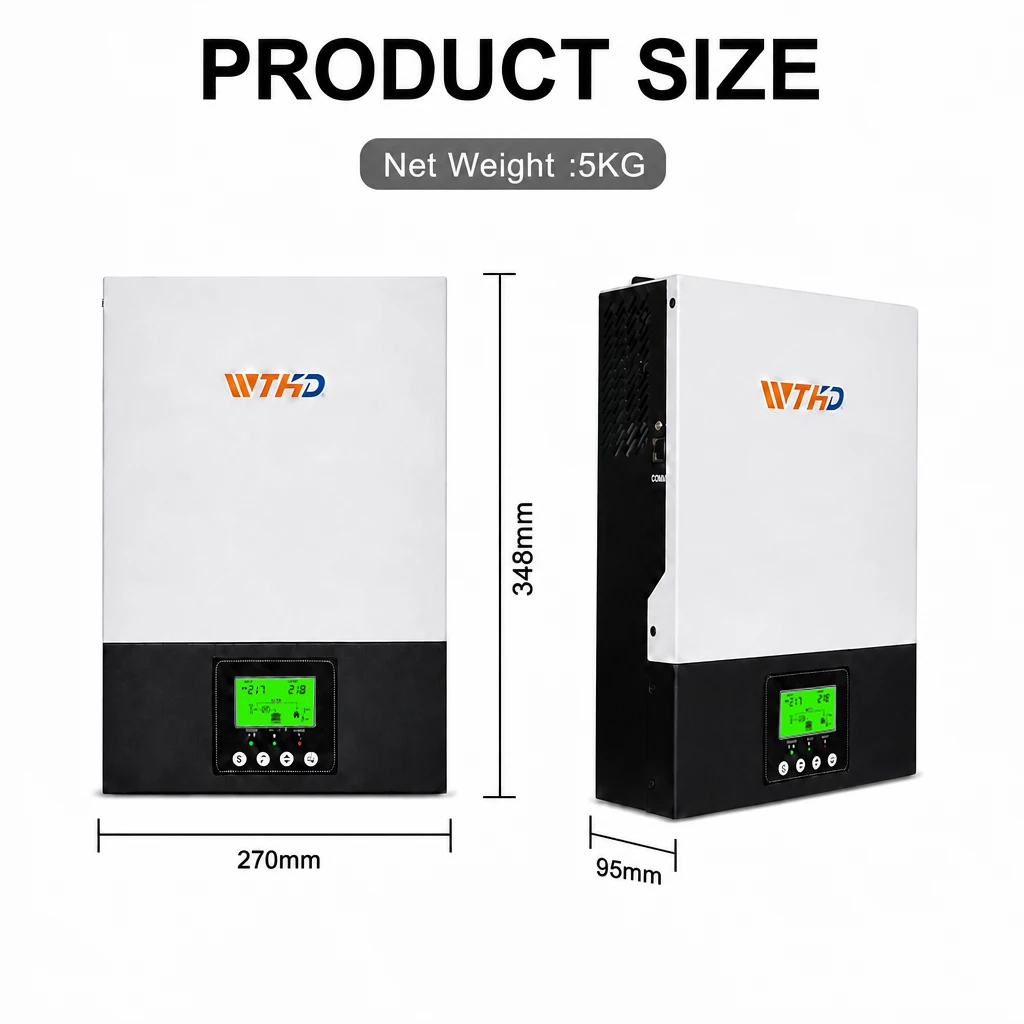

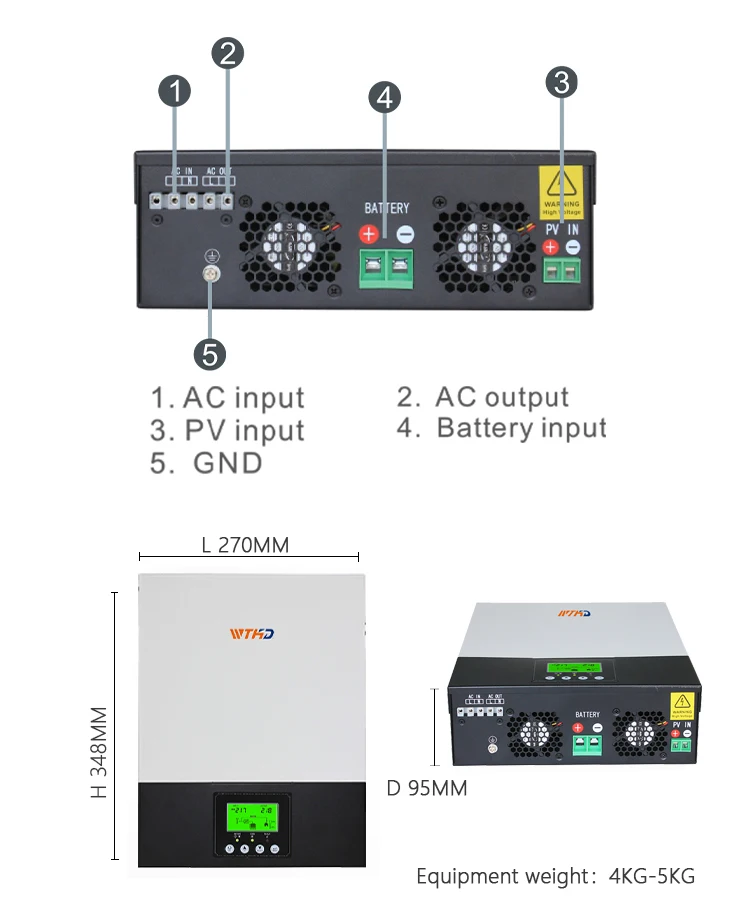

Size (D/W/H) |
95mm x 270mm x 348mm |
Net Weight (kg) |
5 |
|

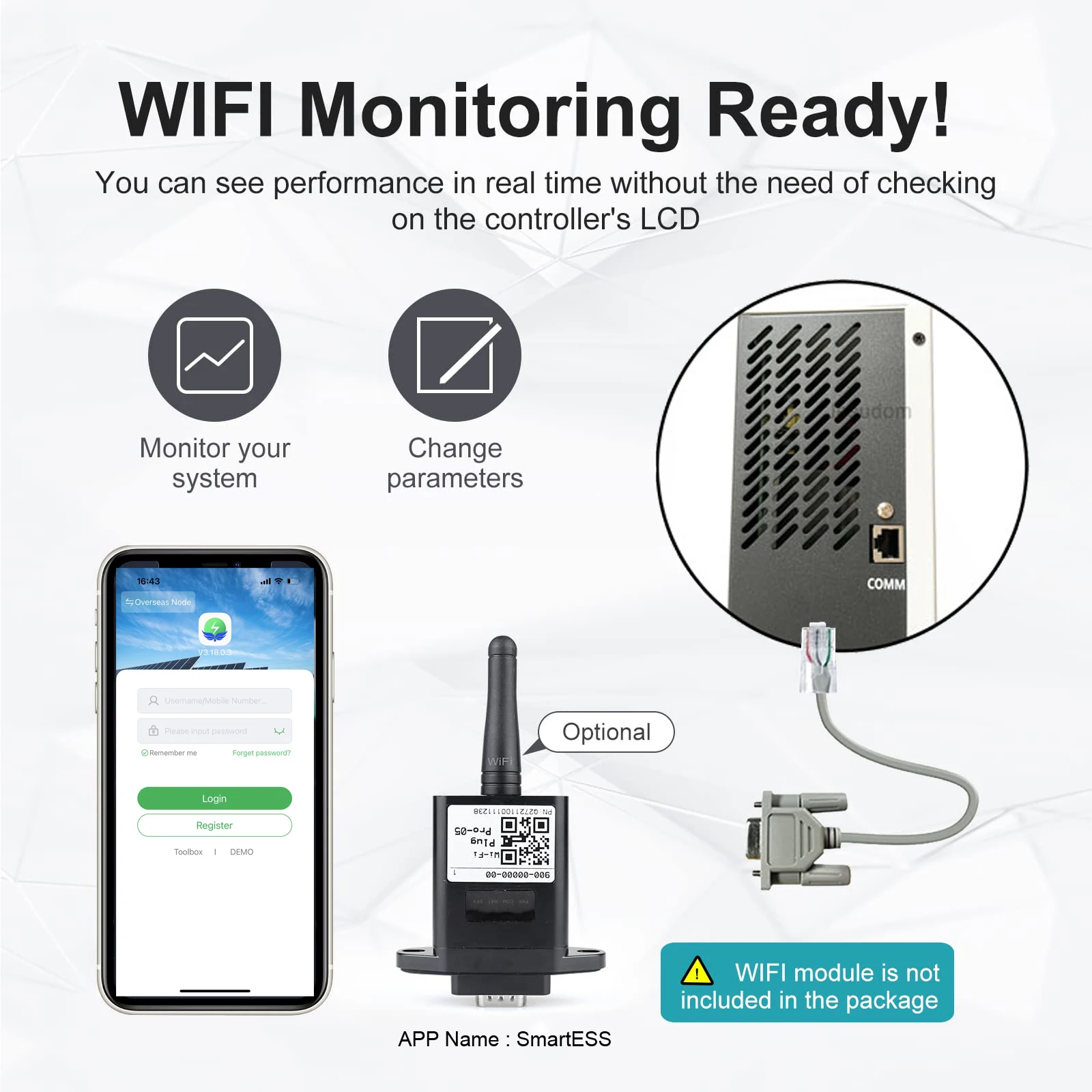

Communication Port |
RS232 |
|
Environment
|
Operating Temperature |
-10℃~50℃ |
Storage Temperature |
-15℃~60℃ |
|
Relative Humidity |
5%~95% (No condensation) |
|
Standard |
Executive Standard |
CE |

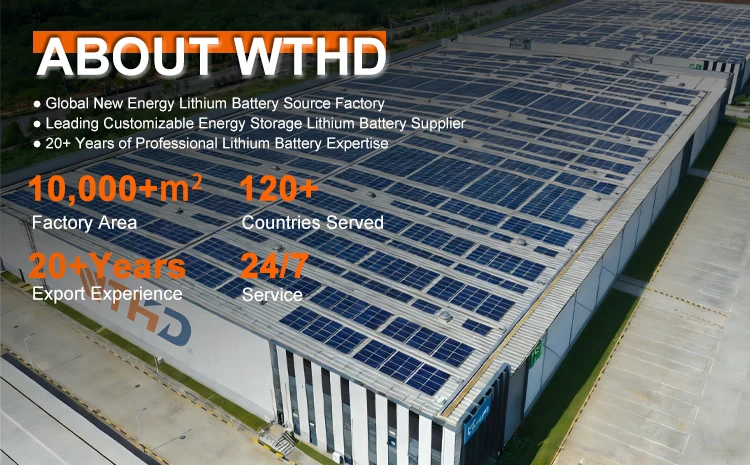

Shenzhen Weitu Hongda Industrial Co., Ltd., established in 2015, is a certified National High-Tech and "Specialized & Innovative" enterprise. We provide advanced, customized power solutions backed by solid R&D and a registered capital of 51 million RMB.
We specialize in durable and adaptable energy systems to meet your precise needs:
●Custom Lithium Battery: Built for performance, safety, and long life.
●Efficient Solar Inverters: Reliable design for optimal energy conversion.
●Full Power Product Range: Including UPS, EPS, and voltage stabilizers.
We can provide OEM and ODM customization services according to customers' requirements. Contact us today for a tailored proposal！！！
Q1: Are you a factory or a trading company?

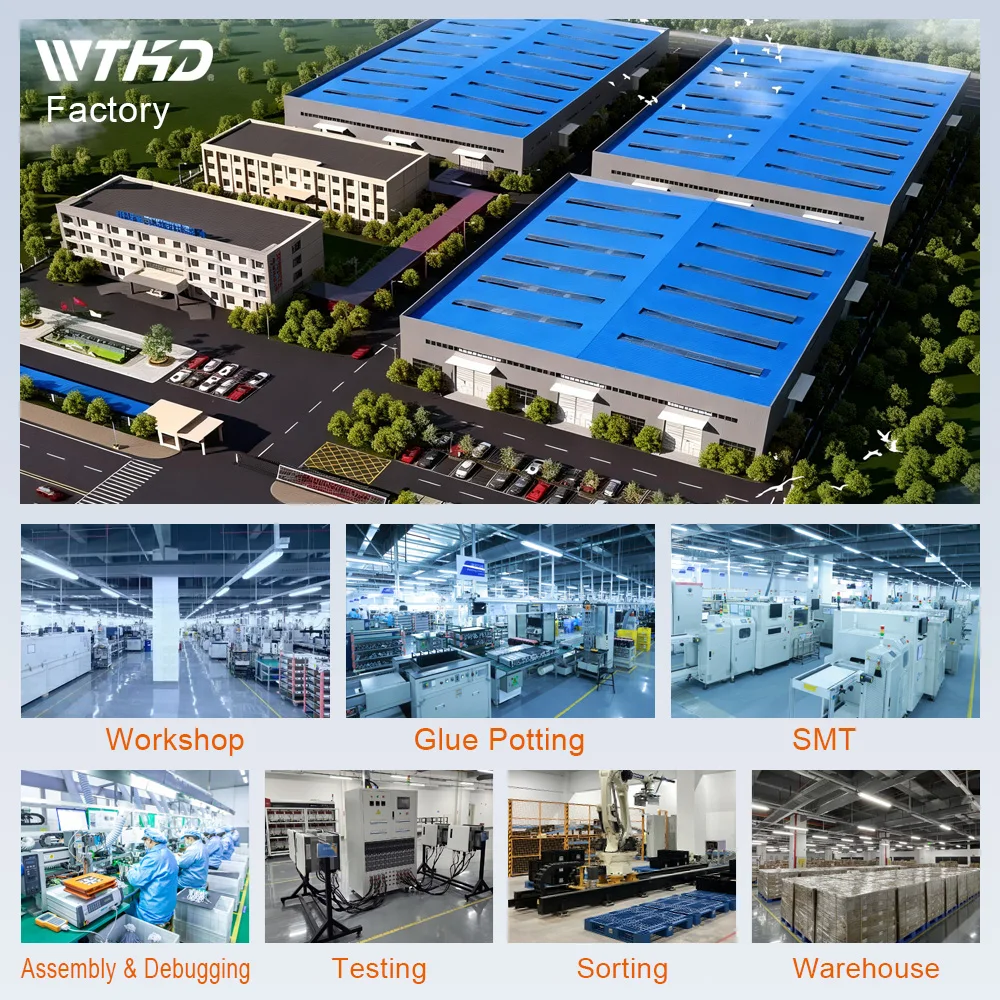

A: We are a manufacturing factory, we focus on OEM and ODM
Q2: What kind of certification do you have?
---ISO9000, ISO14001, CE, ROHS, Thiel, etc.
Q3: Product coverage and industries:
---Solar inverter、Lead-acid batteries、lithium battery、Solar generator、Solar panels
Q4: About the battery
Provide one-stop battery solutions; lead-acid and lithium batteries are available
Q5: Do you accept OEM/ODM?
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible;
Q6: About warranty
---The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and models;
Q7: Can I participate in bidding projects?

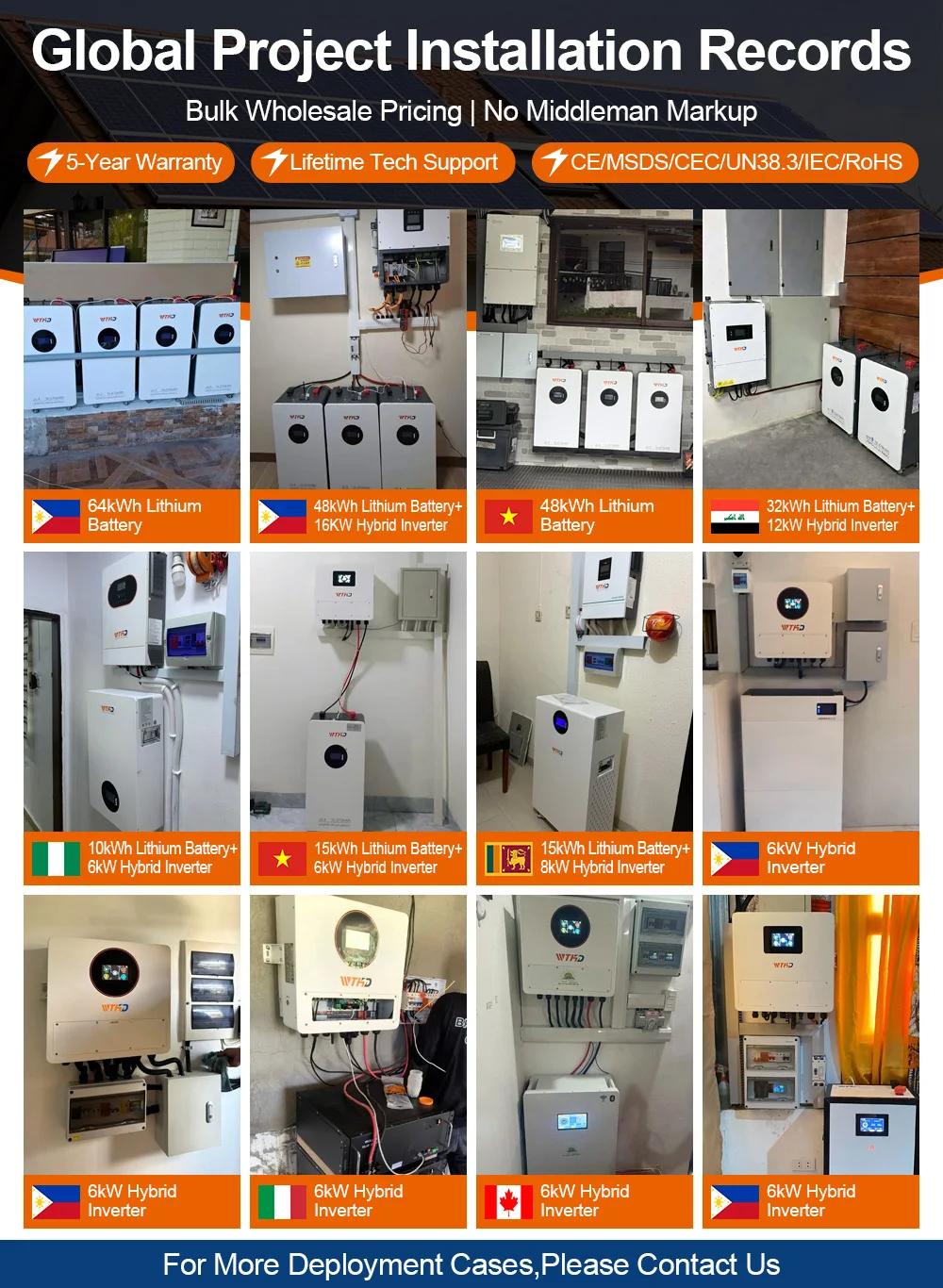

We support large-scale project bidding, authorized manufacturing, project design, and more
