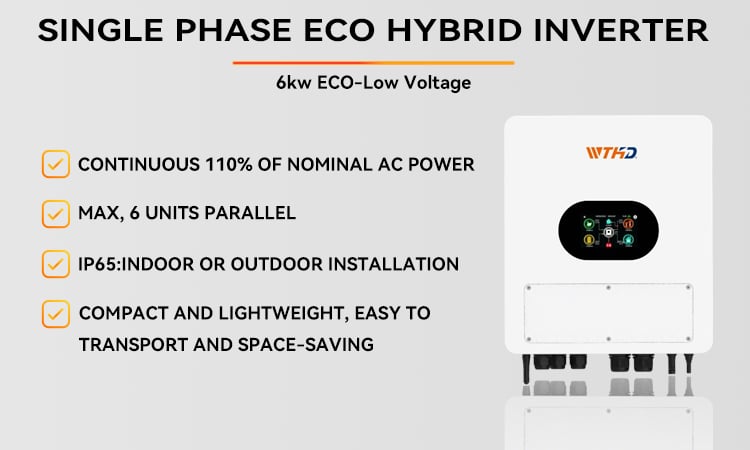

6KW 6000W Single Phase Hybrid Solar Inverter with MPPT Charge LED/LCD Display for Home Use IP65

The WTHD 6KW 6000W Single Phase Hybrid Solar Inverter is a reliable and efficient solution designed to meet the energy needs of your home. This inverter combines advanced technology with user-friendly features, making it an excellent choice for anyone looking to harness solar power while ensuring a steady and uninterrupted electricity supply

With a power rating of 6000 watts (6KW), this single-phase hybrid inverter is capable of handling the energy demands of a typical household. Whether you want to power your lights, fans, refrigerator, or other home appliances, the WTHD inverter provides a stable and consistent power output. Its hybrid design allows it to work both with solar panels and the main utility grid, giving you flexibility and the ability to reduce electricity bills

One of the key features of the WTHD 6KW inverter is its built-in MPPT (Maximum Power Point Tracking) charge controller. This smart technology ensures your solar panels operate at their highest efficiency by constantly adjusting to the best power output point. As a result, you get the most energy possible from your solar setup, improving overall performance and saving more on energy costs

The inverter comes equipped with an easy-to-read LED and LCD display that shows important information such as battery status, charging mode, input/output voltage, and error messages. This clear display makes it simple for homeowners to monitor and manage their solar system without needing specialized knowledge

Durability and safety are also priorities for the WTHD hybrid inverter. It has an IP65 rating, meaning it is dust-tight and protected against water jets, allowing for outdoor installation with confidence even in harsh weather conditions. This robust construction helps ensure long-term operation with minimal maintenance

The WTHD 6KW hybrid solar inverter is designed to integrate seamlessly with your existing solar panels and batteries. With multiple protection features including overload protection, short circuit protection, and low voltage shutdown, it keeps your entire system safe and operating smoothly

The WTHD 6KW Single Phase Hybrid Solar Inverter is a great investment for homeowners looking to maximize their solar energy use. Its powerful output, advanced MPPT charging, clear display, and strong weather resistance combine to offer a dependable and efficient power solution for everyday home use. Whether you want to save on electricity bills or ensure backup power during outages, this inverter is built to deliver

MODEL	WTHD-HI-1P-6KL
PHASE	1-phasein/1-phaseout
MAXIMUMPVINPUTPOWER	9000W
RATEDOUTPUTPOWER	6000W
MAXIMUMCHARGINGPOWER	6000W
GRID-TIEDOPERATION
PV INPUT DC
MaximumDCVoltage	500Vdc
Start-upVoltage/Initial FeedingVoltage	90Vdc/120Vdc
MPPTVoltage Range	60-450Vdc
Number of MPPT Trackers /Maximum Input Current	2/18A
GRIDOUTPUT AC
NominalOutputVoltage	220/230/240VAC
OutputVoltage Range	184-264.5VACor195.5-253VACor184-264.4VAC
NominalOutputCurrent	26.1A
Power Factor	>0.99
EFFICIENCY
MaximumConversion Efficiency(DC/AC）	97%
OFF-GRIDOPERATION
ACINPUT
ACStart-upVoltage/Auto RestartVoltage	120-140VAC/180VAC
Acceptable InputVoltage Range	90-280VAC
Frequency Range	50Hz/60Hz Autosensing
MaximumAC InputCurrent	40A
PV INPUT DC
MaximumDCVoltage	520Vdc
MPPTVoltage Range	50Vdc-450Vdc
NumberofMPPTTrackers/MaximumInputCurrent	2/18A
BATTERYMODEOUTPUT AC
NominalOutputVoltage	220/230/240VAC
OutputWaveform	Puresinewave
Efficiency(DCtoAC)	93%
HYBRIDOPERATION
PV INPUT DC
MaximumDCVoltage	500Vdc
Start-upVoltage/Initial FeedingVoltage	90Vdc/120Vdc
MPPTVoltage Range	50Vdc-450Vdc
NumberofMPPTTrackers/Maximum InputCurrent	2/18A
GRIDOUTPUT AC
NominalOutputVoltage	220/230/240VAC
OutputVoltage Range	184-264.5 VACor 195.5-253 VACor 184-264.4 VAC
NominalOutputCurrent	26.1A
ACINPUT
ACStart-upVoltage/Auto RestartVoltage	120-140VAC/180VAC
Acceptable InputVoltage Range	90-280VACor170-280VAC
MaximumAC InputCurrent	40A
BATTERYMODEOUTPUT AC
NominalOutputVoltage	220/230/240VAC
Efficiency(DCtoAC)	93%
BATTERY&CHARGER
Nominal DCVoltage	48Vdc
MaximumSolarChargingCurrent	135A
MaximumACChargingCurrent	135A
MaximumChargingCurrent	135A
GENERAL
PHYSICAL
Dimension, DxWxH(mm)	500x458.5x122
NetWeight(kg)	20
INTERFACE
Parallel Function	Yes, 6units
Communication Port	RS232/RS485/CAN/Wi-Fi/Drycontact
ENVIRONMENT
Humidity	5%to95%Relative Humidity Non-condensing
IPdegree	IP65
OperatingTemperature	-10℃～50℃
StorageTemperature	-15℃～60℃
