WTHD Single Phase IP65 Hybrid Solar Inverter 6KW 230Vac MPPT WiFi 48V Battery 97% Efficiency Parallel Home Energy System 5-Year
Description
The WTHD Single Phase IP65 Hybrid Solar Inverter 6KW is a reliable and efficient solution for your home energy needs. Designed by WTHD, a trusted brand in solar technology, this inverter is perfect for managing your solar power system with ease and smart features
This inverter supports a 6KW power output and works with a 230Vac single-phase electrical system, making it suitable for most residential homes. It is designed to handle a 48V battery setup, which ensures stable and safe energy storage for use when the sun isn’t shining or during power outages. With a strong 97% efficiency rating, this inverter maximizes the energy you get from your solar panels, helping you save more on electricity bills while reducing your carbon footprint
The WTHD Hybrid Solar Inverter is an all-in-one system that combines solar charging, battery charging, and grid power supply. You can easily manage how your home uses power by prioritizing solar energy first, then battery power, and finally grid electricity. This smart energy management means you always have power available while getting the most out of your solar setup
One of the standout features of this product is its MPPT (Maximum Power Point Tracking) technology. MPPT ensures that your solar panels work at their best possible power output, even during cloudy or less-than-ideal weather conditions. This means your solar system will be more productive throughout the year

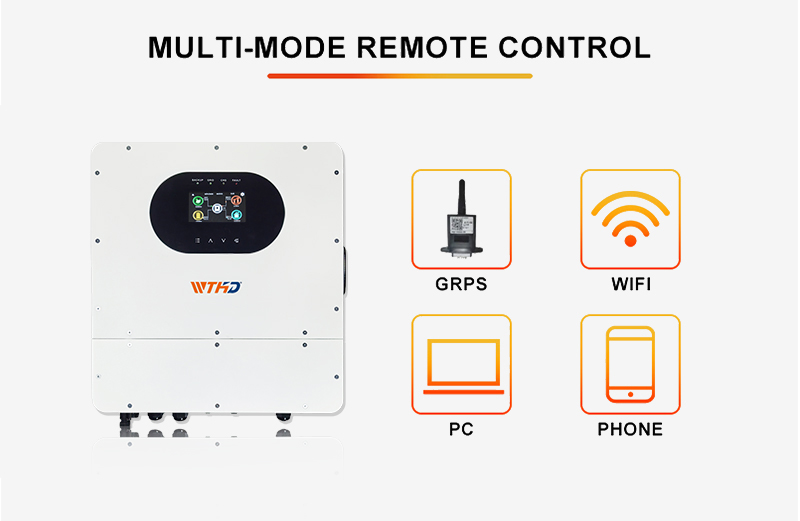

The inverter comes with WiFi connectivity, allowing you to monitor your solar power system remotely through your smartphone or computer. You can check important details like energy production, battery status, and system performance anytime, anywhere. This real-time monitoring makes it easier to keep track of your energy usage and system health
Built to last, the WTHD inverter has an IP65 rating. This means it is dust-tight and protected against water jets, making it perfect for outdoor installation in various weather conditions. You can trust it to perform well year-round without worrying about environmental damage

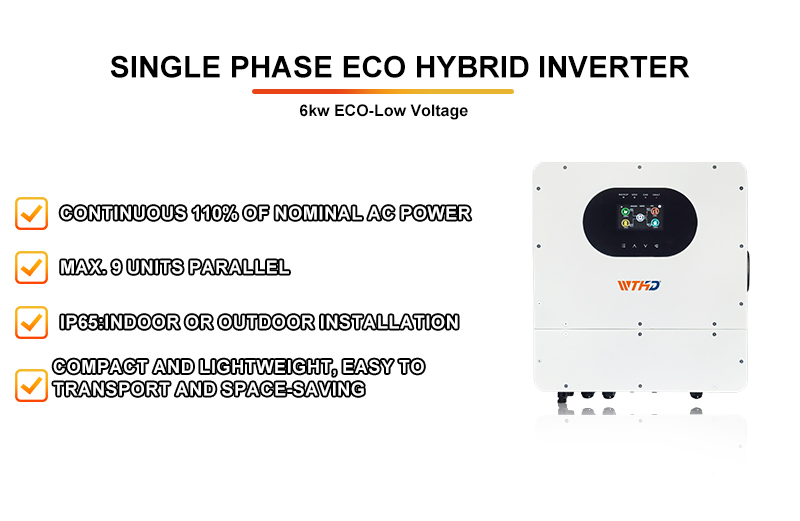

Additionally, the inverter supports parallel connections. This means if you need more power in the future, you can connect multiple units together to increase your energy capacity easily
To top it off, this product comes with a 5-year warranty from WTHD, giving you peace of mind that your investment is protected
The WTHD Single Phase IP65 Hybrid Solar Inverter 6KW offers high efficiency, smart energy management, durable protection, and convenient features in one package. It’s a great choice for anyone looking to build or upgrade a solar home energy system
MODEL |
WTHD-HI-1P-6KL |
|
PHASE |
1-phase in /1-phase out |
|
MAXIMUM PV INPUT POWER |
9000W |
|
RATED OUTPUT POWER |
6000W |
|
MAXIMUM CHARGING POWER |
6000W |
|
GRID-TIED OPERATION |
||
PV INPUT DC |
||
Maximum DC Voltage |
520Vdc |
|
Start-up Voltage /Initial Feeding Voltage |
90Vdc/120Vdc |
|
MPPT Voltage Range |
50-450Vdc |
|
Number of MPPT Trackers /Maximum Input Current |
2/18A |
|
GRID OUTPUT AC |
||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
184-264.5 VAC or 195.5-253 VAC or 184-264.4 VAC( |
|
Nominal Output Current |
26.1A |
|
Power Factor |
>0.99 |
|
EFFICIENCY |
||
Maximum Conversion Efficiency DC/AC |
97% |
|
OFF-GRID OPERATION |
||
AC INPUT |
||
AC Start-up Voltage /Auto Restart Voltage |
120-140 VAC/180 VAC |
|
Acceptable Input Voltage Range |
90-280 VAC |
|
Frequency Range |
50 Hz/60 Hz Auto sensing |
|
Maximum AC Input Current |
40A |
|
PV INPUT DC |
||
Maximum DC Voltage |
520Vdc |
|
MPPT Voltage Range |
50Vdc-450Vdc |
|
Number of MPPT Trackers/Maximum Input Current |
2/18A |
|
BATTERY MODE OUTPUT AC |
||
Nominal Output Voltage |
220/230/240VAC |
|
Output Waveform |
Pure sine wave |
|
Efficiency DC to AC |
93% |
|
HYBRID OPERATION |
||
PV INPUT DC |
||
Maximum DC Voltage |
520Vdc |
|
Start-up Voltage/Initial Feeding Voltage |
90Vdc/120Vdc |
|
MPPT Voltage Range |
50Vdc-450Vdc |
|
Number of MPPT Trackers/Maximum Input Current |
2/18A |
|
GRID OUTPUT AC |
||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
184-264.5 VAC or 195.5-253 VAC or 184-264.4 VAC |
|
Nominal Output Current |
26.1A |
|
AC INPUT |
||
AC Start-up Voltage/Auto Restart Voltage |
120-140 VAC/180 VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280 VAC |
|
Maximum AC Input Current |
40A |
|
BATTERY MODE OUTPUT AC |
||
Nominal Output Voltage |
220/230/240VAC |
|
Efficiency DC to AC |
93% |
|
BATTERY & CHARGER |
||
Nominal DC Voltage |
48Vdc |
|
Maximum Solar Charging Current |
135A |
|
Maximum AC Charging Current |
135A |
|
Maximum Charging Current |
135A |
|
GENERAL |
||
PHYSICAL |
||
Dimension, D x W x H mm |
521x470x236 |
|
Net Weight kg |
30 |
|
INTERFACE |
||
Parallel Function |
Yes, 6 units |
|
Communication Port |

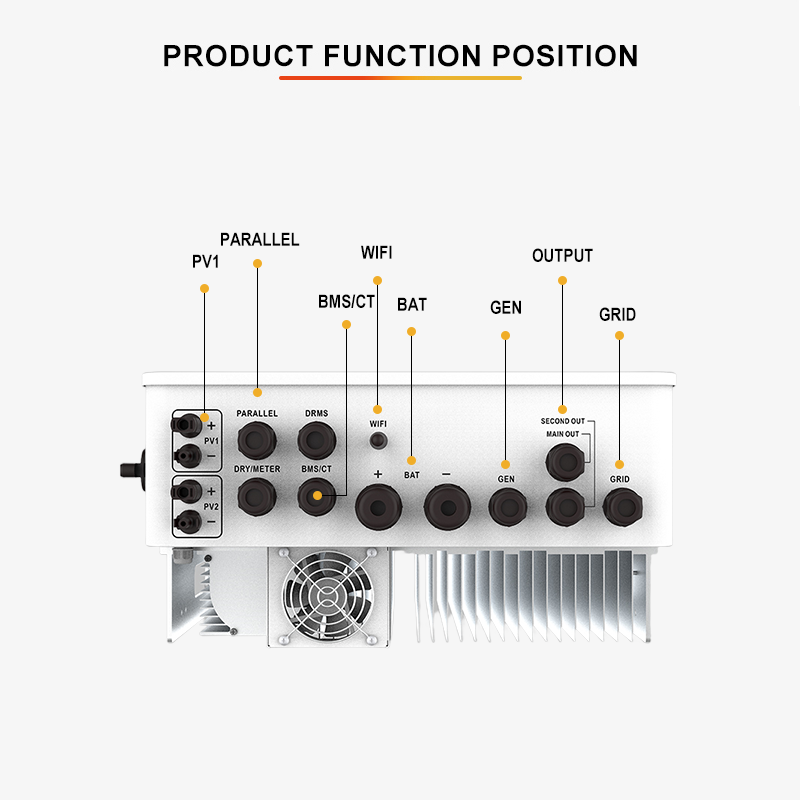

RS232/RS485/CAN/WiFi/Dry contact |
|
ENVIRONMENT |
||
Humidity |
5% to 95% Relative Humidity Non-condensing |
|
IP degree |
IP65 |
|
Operating Temperature |
-10℃～50℃ |
|
Storage Temperature |
-15℃～60℃ |
|
Q1: Are you a factory or a trading company
A: We are a manufacturing factory, we focus on OEM and ODM
Q2: What kind of certification do you have
ISO9000, ISO14001, CE, ROHS, Thiel, etc
Q3: Product coverage and industries:
Solar inverter、Lead-acid batteries、lithium battery, Solar generator、Solar panels
Q4: About the battery
Provide one-stop battery solutions; lead-acid and lithium batteries are available
Q5: Do you accept OEM/ODM
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible;
Q6: About warranty
The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and models;
Q7: Can I participate in bidding projects
We support large-scale project bidding, authorized manufacturing, project design, and more
Q8: Are there overseas branches
Currently, the Southeast Asia Division, the Eastern Europe Serbia Division, and the Middle East Division are set up
